产品名称：Newage便携式光学镜-布氏硬度计

产品型号：Newage便携式光学镜

产品厂商：Newage


















DESCRIPTION

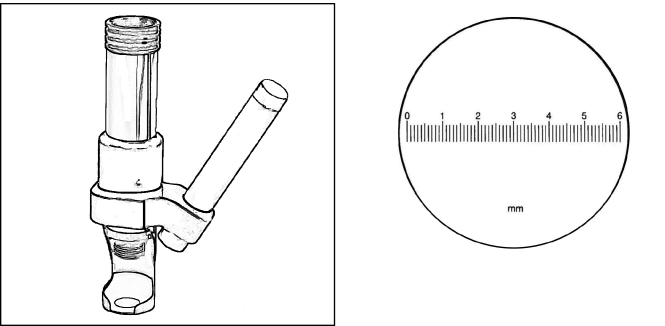

The Newage Model 35-450 Brinell Micro-scope Reader features a calibrated reticle In a flat field optical system. This instrument makes accurate measurements of the indentations for all Brinell type hardness testers.

The Model 35 450 is a compact, portable reader designed as an accessory for Brinell type testers. The Illumination system features a MagLite® SolitaireTM flashlight. The flashlight uses one size AAA battery included with the Instrument). This instrument is quality built and durable, making it suitable for both the shop and laboratory.

The reticle is calibrated in 0. 1 mm units over a range of 6 mm and the field of vision is 7 rnm. Measure the indentation at its largest diameter against the reticle scale. Use this measurement and convert to its Brinell Hardness Number (BHN) by using the chart on the back of this sheet.
