Chatillon DG系列数字测力计
DG 系列是一套出色而经济的解决方案，专用于拉伸或压缩测试，其测试上限为 500 磅力（2.5 千牛）。该机械 测力计 具有 2.25 英寸刻度盘，可作为手持装置，或装配... Chatillon DG 系列属于低成本的测力解决方案，适用于多种多样的测力应用。 DG 系列机械测力计配有 2.25 英寸刻度盘并配有用于峰值捕捉和快速归零的峰值保持按钮。同心刻度盘只能顺时针测量，可旋转360度进行去皮操作。DG 系列配有通用装配平台，其机械过载性能可保护测力计免于受损。 该......
产品描述
DG 系列是一套出色而经济的解决方案，专用于拉伸或压缩测试，其测试上限为 500 磅力（2.5 千牛）。该机械测力计具有 2.25 英寸刻度盘，可作为手持装置，或装配...
Chatillon DG 系列属于低成本的测力解决方案，适用于多种多样的测力应用。
DG 系列机械测力计配有 2.25 英寸刻度盘并配有用于峰值捕捉和快速归零的峰值保持按钮。同心刻度盘只能顺时针测量，可旋转360度进行去皮操作。DG 系列配有通用装配平台，其机械过载性能可保护测力计免于受损。
该机械测力计精度为全量程 ±0.5%，可作为手持装置，或装配选配的手柄套装以供双手操作。若配合 MT500 系列机械测试台使用，DG 系列可提供一个高达 500 磅力（千牛）的多功能经济测试系统。
DG 系列主要特色：
- 三种分度单位（磅力、千克力和牛）
- 真正安全
- 峰值开关
DG 系列机械测力计配有 2.25 英寸刻度盘并配有用于峰值捕捉和快速归零的峰值保持按钮。同心刻度盘只能顺时针测量，可旋转360度进行去皮操作。DG 系列配有通用装配平台，其机械过载性能可保护测力计免于受损。
该机械测力计精度为全量程 ±0.5%，可作为手持装置，或装配选配的手柄套装以供双手操作。若配合 MT500 系列机械测试台使用，DG 系列可提供一个高达 500 磅力（千牛）的多功能经济测试系统。
DG 系列主要特色：
- 三种分度单位（磅力、千克力和牛）
- 真正安全
- 峰值开关
DG Series Mechanical Force Gauge
The CHATILLON® DG Series mechanical force gauge is ideal for a wide range of force testing applications up to 500 lbf (2.5 kN). Based on our popular DPPH Series force gauge, the DG Series features a larger, 2.25-inch dial for improved resolution and readability, peak hold button, durable plastic housing, universal mounting plate, ergonomic shape and improved accuracy of +0.5% of full scale. The DG gauge is an excellent, economical solution for tensile or compression testing.
The DG Series may be used as a hand-held device or equipped with an optional handle set for two-hand operation. It is ideal for test stand applications, and when combined with the MT500 Series mechanical test stand, offers you a versatile, economic test system with a capacity of up to 500 lbf (2.5 kN).

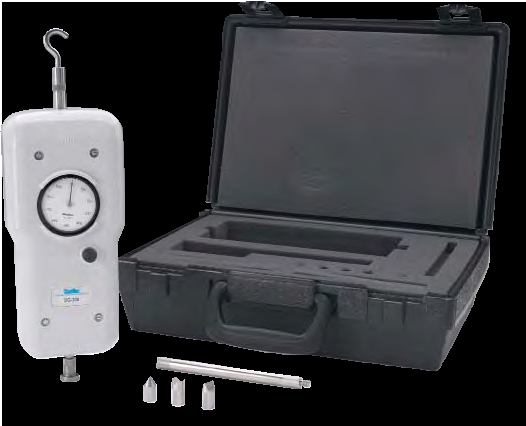

The DG Series features an an easy to read concentric dial that measures clockwise only. Dial rotates 360-degrees for taring. A peak hold switch captures peak readings and can be easily and quickly returned to zero. A mechanical overload feature protects the gauge from damage. Available in lbf, kgf or N units of measure. DG Series gauges come complete with protective carrying case and a set of stainless steel attachments. A Certificate of Calibration with NIST
Data is supplied standard.
Features
Three Graduation Styles
- LBF
- KGF
- Newtons
Tensile (Pull) and Compression (Push) Testing
Peak Load Switch
Tare Ring
Intrinsically Safe
NIST Calibration with Data
2 Year Warranty
Specifications
| Accuracy: | +0.5% of Full Scale |
| Overload Capacity: | 110% of Rated Capacity |
| Maximum Overload: | 150% of Rated Capacity |
| Tare Capacity: | 10% of Rated Capacity |
| Dial Resolution: | 0.5% of Full Scale |
| Deflection (Full Scale): | 10mm (.394 inches) |
| Operating Temperature: 40°F to 110°F | |
| Instrument Weight: | 5°C to 45°C |
| 4.7 lbs (0.68 kg) | |
| Shipping Weight: | 8.4 lbs (3.80 kg) |
Ordering
| Dial Style - LBF | Dial Style - KGF | Dial Style - N | ||||||||
| Model | Capacity | Model | Capacity | Model | Capacity | |||||
| DG-200 | 200 x 1 lbf | DG-100KG | 100 x 0.5 kgf | DG-1000N | 1000 x 5 N | |||||
| DG-300 | 300 x 1.5 lbf | DG-250KG | 250 x 1.25 kgf | DG-2500N | 2500 x 12.5 N | |||||
| DG-400 | 400 x 2 lbf | |||||||||
| DG-500 | 500 x 2.5 lbf | |||||||||
| Accessories | ||||||||||
| Part No. | Description | DG-XXXX | Capacity | Thread | ||||||
| SPK-FMG-011B | Flat Adapter | n | 500 lbf, 2.5 kN | 5/16-18F | ||||||
| SPK-FMG-012C | Hook, Stationary | n | 500 lbf, 2.5 kN | 5/16-18F | ||||||
| NC002500 | Hook, with Snap Latch | l | 500 lbf, 2.5 kN | 5/16-18F | ||||||
| SPK-FMG-008B | Chisel Point Adapter | n | 500 lbf, 2.5 kN | 5/16-18F | ||||||
| SPK-FMG-009B | Point Adapter | n | 500 lbf, 2.5 kN | 5/16-18F | ||||||
| SPK-FMG-010B | Notch Adapter | n | 500 lbf, 2.5 kN | 5/16-18F | ||||||
| NC000725 | V-Notch Fixture, Large | l | 500 lbf, 2.5 kN | 5/16-18F | ||||||
| NC000721 | V-Notch Fixture, Small | l | 500 lbf, 2.5 kN | 5/16-18F | ||||||
| SPK-FMG-013B | Extension Rod, 13-inch | n | 500 lbf, 2.5 kN | 5/16-18F | ||||||
| SPK-FMG-142 | Curved Compression Fixture | l | 500 lbf, 2.5 kN | 5/16-18F | ||||||
| SPK-FMG-143 | Compression Plate, Circular | l | 500 lbf, 2.5 kN | 5/16-18F | ||||||
| SPK-FMG-144 | Palm Fixture | l | 500 lbf, 2.5 kN | 5/16-18F | ||||||
| SPK-FMG-145 | Compression Plate, Rectangular, Large | l | 500 lbf, 2.5 kN | 5/16-18F | ||||||
| SPK-FMG-146 | Compression Plate, Rectangular, Small | l | 500 lbf, 2.5 kN | 5/16-18F | ||||||
| NC002844 | Grasping Cable | l | 500 lbf, 2.5 kN | 5/16-18F | ||||||
| SPK-DG-HANDLE | Handle Assembly | l | 500 lbf, 2.5 kN | 5/16-18F | ||||||
| NC002728 | DG Series Carrying Case | n | ||||||||
| NC002845 | Soft Case Fanny Pack | l | ||||||||
